How to install the COLSERT

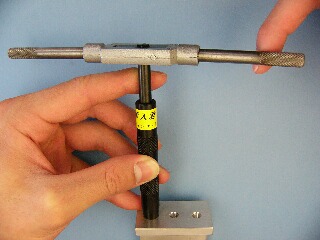

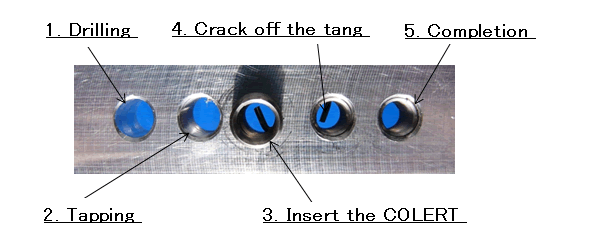

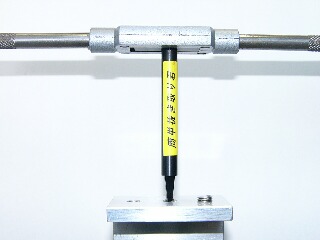

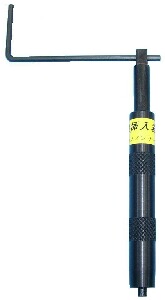

①Make hole by drill for threaging 　（Drill size is different for each size of COLSERT） 　Examp.) For M5-0.8 case * drill ɸ 5.2mm selected   Colsert size  Proper drill size  M 3-0.5  φ3.1mm  M 4-0.7  φ4.2mm  M 5-0.8  φ5.2mm  M 6-1.0 φ6.3mm *Colser can be replaced when female screw was damaged ②Use for insert screw tap specified 　　*there are each size tap for the COLSERT ③Insert COLSERT by using Inserter 　　* there are each size of exclusive inserting tool Inserter ④Crack off the TANG after complete insert the COLSERT 　　*There are each size of exclusive crack off tool Cracker
